Noisestop Acoustic Panel 22.5mm x 1200mm x 1200mm Soundproof Panel
£43.95 ex. VAT
In stock, ready to ship
Estimated Delivery: 3 - 5 Days
(18th Oct - 20th Oct)

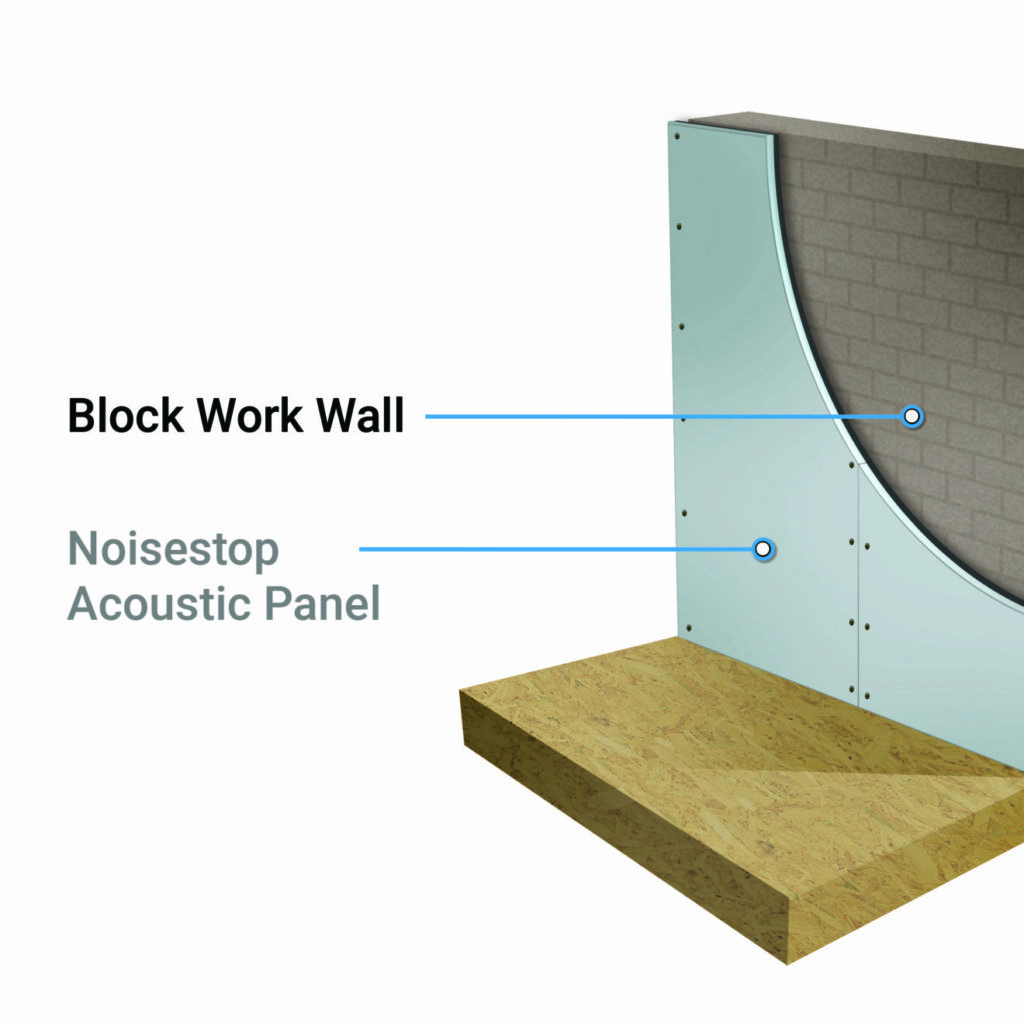

Noisestop Acoustic Panel is a slimline solution that provides noise reduction against household noise without compromising living space. At only 22.5mm thick, it is one of the slimmest soundproof boards available. Apply Noisestop Acoustic Panel directly onto brick party walls and internal stud walls to block airborne sounds.
Noisestop Acoustic Panel offers soundproofing solutions for brick party walls, concrete blocks and stud walls. Noisestop Acoustic Panel, just 22.5mm thick, applied as a direct-to-wall soundproofing solution, effectively blocking up to 49dB on party walls. Part E is compliant and fire-rated for up to 30 minutes; it ensures airborne noise reduction without compromising living space. This slimline solution provides noise reduction against household noise without compromising living space.
- Acoustic Plasterboard 12.5mm – Heavier than standard plasterboard, which adds density to the area. The plasterboard is finished in the same way as standard plasterboard.
- Mass-loaded vinyl 5kg/2.5mm – High mass barrier layer for sound absorption.
- Closed cell foam 5mm – Acoustic grade foam to dampen and absorb vibration sound.
- Mass-loaded vinyl 5kg/2.5mm – High mass barrier layer for sound absorption.
- Thickness: 22.5mm
- Size: 1200mm x 1200mm (1.44sqm)
- Weight: 29 kg
- Fire thirty minutes
Thermal Resistance R:
- Acoustic plasterboard 12.5 mm = 0.050 m2 K/W
- Closed Cell Foam: 0.23 m² K/W
- Mass-loaded vinyl 0.14 m² K/W
Thermal Conductivity λR:
- Acoustic plasterboard 0.25 W/mK to BS EN 12524:2000
- Closed Cell Foam: 0.039 W/mK
- Mass-loaded vinyl 0.037 W/mK
Reaction to Fire
- Acoustic plasterboard 12.5mm Euroclass A2-s1, d0
- Closed Cell Foam: FMVSS 302
- Mass-loaded vinyl 10kg EN 13501-1 B-s2,d0 (2)
Brick Wall
Untreated brick wall DnT,w
Single skin 100mm brick wall 38db
Treated brick wall DnT,w
Noisestop Acoustic Panel applied 49dB
Improvement DnT,w
Noise reduction with treatment 11dB
Stud Wall
Untreated stud wall DnT,w
Untreated 100mm stud wall with acoustic insulation and 12.5mm plasterboard on either side 36dB
Treated stud wall DnT,w
Noisestop Acoustic Panel applied to one side 48dB
Improvement DnT,w
Noise reduction with treatment 12dB
Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. So, for instance, if you have a sound that measures 70dB and it decreases to 60dB, it would sound about half as loud to the human ear. Decibels explained.
NOTE: When the panel is installed, the plasterboard layer faces into the room, and the acoustic membrane on the back of the board goes onto the wall.
- Ensure the surface you are applying the panels is in good condition, make good any remedial work to the existing wall to ensure it is flat and secure before you attach the panels.
- Remove skirting boards and coving and extending electrical outlets; these can be reinstated once the work is complete.
- Begin the installation by installing the bottom row of boards. Leave a 2-3mm gap between the floor and the boards using 2-3mm packers or an equivalent to support the panels.
- Apply the Noisestop Acoustic Panel to the walls using Hammer Fixings or the Smart Tack Adhesive. We only advise using the adhesive on flat walls; approximately one tin will fix five panels. Fix the panels using nine hammer fixings per board if the wall is uneven or in poor condition. Screw the panels onto timber or metal studs with drywall screws.
- Use acoustic sealant between each panel as you put them together.
- Leave a 2-3mm gap around the wall’s perimeter to reduce flanking sound transmission, and apply an acoustic sealant to fill the gap once the installation is complete.
- Cut the panels using a hand saw or a circular saw.
- Skim plaster or tape and fill the tapered edges.
- Upon completion of the soundproofing, reinstate the skirting and coving.
- If you are reinstating electrical outlets, use acoustic putty pads inside recessed back boxes.
