Noisedeck 19 – T&G Overlay Floating Floorboard 1.2m x 0.6m

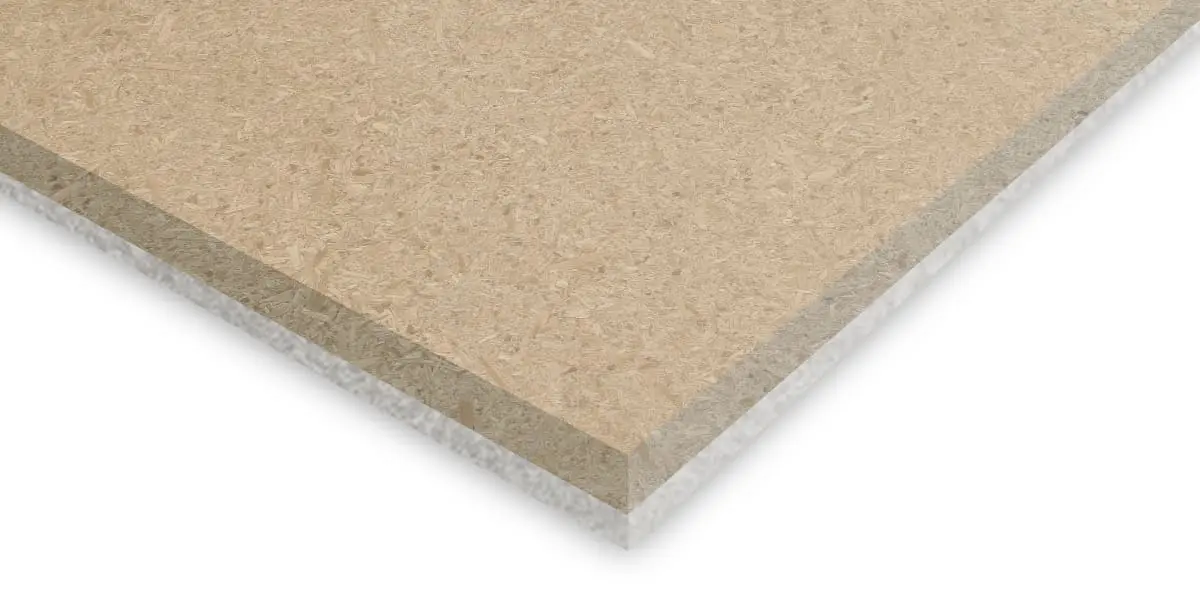

Noisedeck 19 overlay system

The Noisedeck 19 comprises the following materials.

1. 9mm T&G all sides MR MDF
2. 10mm 10mm PET mat

• System thickness: 19mm interlocking T&G
• Size: 19mm x 1200mm x 600mm (0.72sqm)
• Weight: 5kg per sheet

Thermal Conductivity:

• 9mm P5MDF: 0.15 W/mK

Thermal Resistance:

• 9mm MDF: 0.15 m² K/W

Fire:

• EN13501-1: D-s2, d0

The higher the figure for airborne, the better the performance. The lower the figure for impact, the better the performance.

Overlay system airborne results

Without soundproofing 41dB

With Noisedeck 19 laid over 18mm flooring, 100mm acoustic insulation between joists, Soundbreaker bars and two layers of 12.5mm acoustic plasterboard Rw+Ctr 58dB (higher the better)

Overlay system impact results

Without soundproofing 79dB

With Noisedeck 19 laid over 18mm flooring, 100mm acoustic insulation between joists, Soundbreaker bars and two layers of 12.5mm acoustic plasterboard Ln,w 45dB (lower the better)

Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. So, for instance, if you have a sound that measures 70dB and it decreases to 60dB, it would sound about half as loud to the human ear. Decibels Explained.

• Install directly over the floor as an overlay system
• Interlocking T&G edges require wood glue to secure them. No mechanical fixing is required
• Lay in a brick bond pattern
• Ensure all joins are supported
• Ensure the flooring is isolated from the walls using the perimeter isolation tapes

1. The subfloor should be prepared with any fixings driven below the surface. All boards should be securely fixed, dust—and debris-free, and of serviceable quality.
2. Start by cutting the tongue from the boards that abut the wall and scribe in as necessary. Perimeter boards should be separated from the wall using our isolation perimeter strip, which prevents contact between the board and the wall and skirting board.
3. Boards should be laid in a brick bond pattern, commencing as far away as possible from any doorway. Where the installation is to be directly onto joists, the boards should be laid at 90º to the joist run.
4. When cutting boards, some dust will be generated; using PPE is recommended.
5. It may be necessary to provide additional bracing and noggins to ensure sufficient rigidity of the supporting medium.
6. Any pipework or services that need to pass through the floor should pass through a hole larger than the pipe or service, with the gap sealed with acoustic and intumescent sealant.
7. In a bathroom or kitchen installation, the units should be installed on a separate plywood or OSB platform, not directly on the Noisedeck.
8. Any new partitions should be constructed directly from the subfloor and isolated from the panels using the isolation foam perimeter strip. Mechanical fixings should not be used except where two panels with cut edges abut at a doorway to secure the end of the panel.
9. All tongue-and-groove joints should be tightly butted and glued top & bottom with wood glue, with any excess removed from the surface.
10. Once installed, the boards should not be trafficked for at least 24 hours before the skirting boards or surface finishes are installed. A final check should be conducted to ensure there are no open voids throughout the installation; any found should be sealed with acoustic and intumescent sealant.

Most floor finishes are suitable for laying directly over Noisedecks. We recommend using a suitable flexible adhesive and grout when laying tiles. If additional strengthening is required, sheet materials can be laid over the Noisedecks.

We recommend installing the Noisedeck boards with a suitable ceiling system to meet Part E Regulations. For the highest level of soundproofing, combine with the AcoustiClip Timber Ceiling System.
