Stud Wall Kit DFM Acoustic Insulation
Price range: £214.89 through £772.55 ex. VAT
Estimated Delivery: 3 - 5 Days
(17th Oct - 19th Oct)

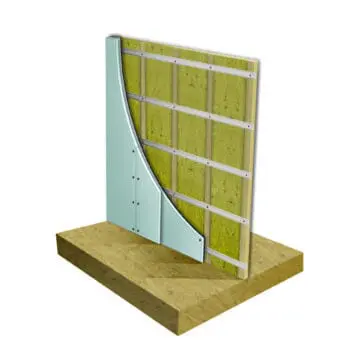

The Noisestop Systems Stud Wall Kit is a complete, high-performance wall soundproofing solution for internal stud walls.
Designed to reduce airborne noise through timber or metal frames, this all-in-one acoustic insulation system includes decoupling bars, acoustic insulation, dual-layer soundproof boards, and sealant for a fully sealed, high-density wall structure.
Ideal for blocking TV, conversation, and everyday household noise, the Dense Fibre Matting (DFM) acoustic infill offers an efficient and cost-saving alternative to buying individual components.

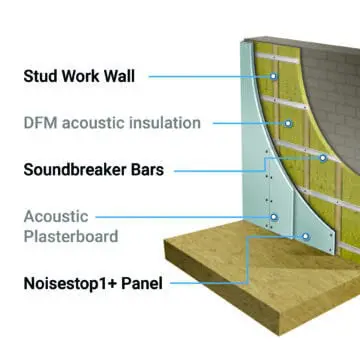

This all-in-one acoustic wall insulation includes Soundbreaker Bars to decouple and isolate the stud frame from the boards, DFM acoustic infill between the studs to reduce airborne noise, and two layers of soundproof boards, adding mass and sound damping. Each kit also includes acoustic sealant tubes to seal the wall properly for optimal performance.
Soundproofing: Timber and metal stud walls
Noise type: Airborne (TV, radio, conversation)
Noise reduction: High–dual–board system with acoustic insulation
System depth: Approx. 75mm+ depending on stud size
Coverage: Varies by kit size – full system included
Cost: Priced per kit – cost-effective vs individual items
Installation: DIY or trade-friendly
Fixing: Soundbreaker Bars, mechanical fixings, acoustic sealant
Finish: Plaster, tape and fill, paint or wallpaper
Noisestop Systems Stud Wall Kit – Slim Profile Stud Wall Acoustic Insulation
Create quieter, more private spaces with the Noisestop Systems Stud Wall Soundproofing Kit, a high-performance sound insulation system for both new and existing stud walls.
This space-saving solution features a slimline profile without compromising acoustic performance, making it ideal for reducing noise transfer between rooms in homes, offices, or commercial properties.
This advanced soundproofing kit combines key sound-blocking and absorption components, including high-density acoustic insulation, Soundbreaker resilient channels, and the Noisestop 1 Plus Panel – an innovative acoustic board engineered to block airborne sound effectively.
Together, these layers disrupt sound vibrations, significantly improving wall sound insulation and enhancing room-to-room privacy.
Why Choose the Noisestop Stud Wall Soundproofing System?
- Slimline design – ideal for rooms where space is limited
- Reduces airborne noise, including speech, TV, and music
- Perfect for partition walls, bedrooms, home offices, and more
- Suitable for both DIY and professional installations
Materials supplied with this system:
- Acoustic insulation 50mm/60kg/m3 – High-density sound insulation slabs
- Soundbreaker bars 3m – Decoupling channel to isolate the stud frame from the boarding
- Noisestop 1 Plus Panel 18mm 1200mm x 1200mm (1.44sqm) – 12.5mm soundboard laminated with 10kg mass-loaded vinyl
- 12.5mm Acoustic plasterboard 1200mm x 1200mm (1.44sqm) – Denser than standard plasterboard
- Acoustic sealant 310ml
Select the required Total Wall Area from the dropdown box at the top of the page to see the quantities supplied with this system.
We recommend ordering areas individually and adding them to the basket rather than adding them to one large area. You can order multiple areas in the same order.
Quantity of materials supplied in your order
| Area m2 | DFM 50mm/60kg (6.48sqm per pack) | Soundbreaker Bars 3m | Noisestop 1 Plus Panel 18mm (1.44sqm) | 12.5mm Soundboard (1.44sqm) | Acoustic sealants (310ml standard size) |
|---|---|---|---|---|---|
| 5 | 1 | 5 | 4 | 4 | 2 |
| 6 | 1 | 6 | 5 | 5 | 2 |
| 7 | 2 | 7 | 5 | 5 | 2 |
| 8 | 2 | 8 | 6 | 6 | 2 |
| 9 | 2 | 9 | 7 | 7 | 2 |
| 10 | 2 | 10 | 7 | 7 | 2 |
| 11 | 2 | 11 | 8 | 8 | 2 |
| 12 | 2 | 12 | 9 | 9 | 2 |
| 13 | 3 | 13 | 10 | 10 | 3 |
| 14 | 3 | 14 | 10 | 10 | 3 |
| 15 | 3 | 15 | 11 | 11 | 3 |
| 16 | 3 | 16 | 12 | 12 | 4 |
| 17 | 3 | 17 | 12 | 12 | 4 |
| 18 | 3 | 18 | 13 | 13 | 4 |
| 19 | 3 | 19 | 14 | 14 | 4 |
| 20 | 4 | 20 | 14 | 14 | 4 |
- System thickness 47mm (from the stud frame)
- Noise reduction 55dB
- Fire One hour
Thermal Resistance R:
- Acoustic plasterboard 12.5 mm = 0.050 m2 K/W
- Acoustic plasterboard 15.0 mm = 0.060 m2 K/W
- Mass-loaded vinyl 0.14 m² K/W
- Acoustic insulation 2.90 W/mK
Thermal Conductivity λR:
- Acoustic plasterboard 0.25 W/mK to BS EN 12524:2000
- Mass-loaded vinyl 0.037 W/mK
- Acoustic insulation 0.034 W/mK
Reaction to Fire
- Acoustic plasterboard 12.5mm & 15mm Euroclass A2-s1, d0
- Mass-loaded vinyl 10kg EN 13501-1 B-s2,d0 (2)
- Acoustic insulation EN13501-1: A1
Untreated stud wall DnT,w
Stud wall with 12mm plasterboard on either side 38dB
Treated stud wall DnT,w
50mm Stud Wall System 55dB
Improvement DnT,w
Noise reduction with treatment 17dB
Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. So, for instance, if you have a sound that measures 70dB and it decreases to 60dB, it would sound about half as loud to the human ear. Decibels explained.
The Noisestop Stud Wall Soundproofing System can be applied to both new and existing stud walls. For existing walls, you’ll need to remove the plasterboard from one side. For new builds, begin by applying isolation strips around the perimeter of the stud frame to minimise vibration transfer.
To reduce flanking noise, insulate the floor and ceiling cavities using acoustic slabs where possible.
- Stud Cavity Insulation: Fill the cavity between studs with acoustic insulation, ensuring complete coverage. Cut slabs slightly wider than the gap so they friction-fit securely between the studs.
- Fitting Soundbreaker Bars: Fix the Soundbreaker Bars horizontally at 600mm centres, starting approximately 50mm from the floor and ceiling. Secure them to the frame using the pre-drilled holes.
- Installing the Acoustic Boards
- Fix the first layer (e.g. Noisestop 1 Plus Panel) to the bars using drywall screws into the wide corrugated flange.
- Add the second layer of soundproof plasterboard the same way, staggering joints where possible for better acoustic performance.
- Sealing the Wall: Leave a 3mm gap around the perimeter of the wall. Once the boards are in place, fill all perimeter gaps with acoustic sealant to maintain airtightness.
- Finishing Touches: Finish as you would a standard plasterboard wall — skim plaster, tape and fill, then decorate. Electrical outlets can be installed as required; use acoustic putty pads inside back boxes to preserve sound insulation.
