AcoustiClip Soundproof Partition for Brick Wall

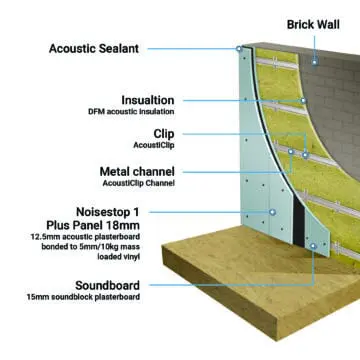

Materials supplied with this system:

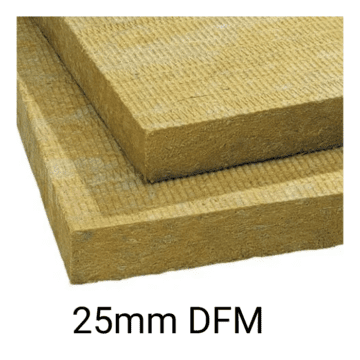

• Acoustic insulation 25mm/60kg/m3 – High-density sound insulation slabs

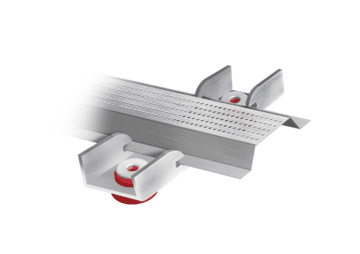

• AcoustiClip – Sound isolation anti-vibration clip
• AcoustiChannel – Metal furring channel 1800mm
• Soundboard 15mm – High-density soundblock paperboard 1200mm x 1200mm (1.44sqm)
• Noisestop 1 Plus Panel 18mm –  12.5mm soundboard laminated with 10kg mass-loaded vinyl 1200mm x 1200mm (1.44sqm)
• Acoustic sealant 310ml

Select the required Total Wall Area from the dropdown box at the top of the page to see the quantities supplied with this system.

We recommend ordering areas individually and adding them to the basket rather than adding them to one large area. You can order multiple areas in the same order.

Quantity of materials supplied in your order

• System thickness 77mm
• Noise reduction 63dB (decibels explained)
• Fire one hour

Thermal Resistance R:

• Acoustic plasterboard 12.5 mm = 0.050 m2 K/W
• Acoustic plasterboard 15.0 mm = 0.060 m2 K/W
• Mass-loaded vinyl 0.14 m² K/W
• Acoustic insulation 2.90 W/mK

Thermal Conductivity λR:

• Acoustic plasterboard 0.25 W/mK to BS EN 12524:2000
• Mass-loaded vinyl 0.037 W/mK
• Acoustic insulation 0.034 W/mK

Reaction to Fire

• Acoustic plasterboard 12.5mm & 15mm Euroclass A2-s1, d0
• Mass-loaded vinyl 10kg EN 13501-1 B-s2,d0 (2)
• Acoustic insulation EN13501-1: A1

Airborne sound insulation values

• RW 63dB

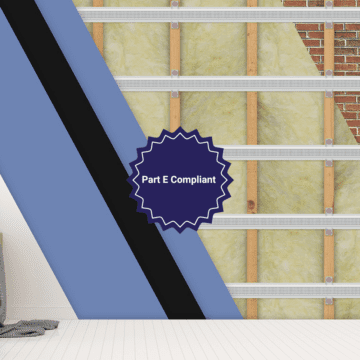

Part E Building Regulations requires a minimum value of at least 43-45dB

Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. For instance, if a sound measures 70dB and decreases to 60dB, it would sound about half as loud to the human ear. Decibels explained.

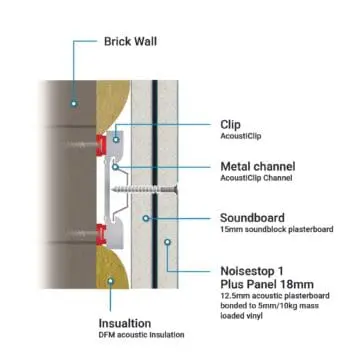

• Screw the AcoustiClip directly onto the masonry or brick wall. Space the clips vertically at 600mm centres with a row of clips 100 mm from the bottom of the wall and 150mm from the ceiling. The clips should be no more than 1200mm apart horizontally (see the diagram below).
• Clip the AcoustiChannel into the clips, join the lengths of the channel by overlapping them by 100mm and screwing them together with self-tapping or drywall screws.
• Infill the cavity with 25mm DFM acoustic insulation between the AcoustiChannel.
• Using 25mm drywall screws, attach the first layer of the 15mm acoustic plasterboard. Leave a 2-3mm gap around the wall’s perimeter to reduce noise transfer into the adjoining walls, ceilings and floors.
• Using 50mm drywall screws, attach the Noisestop 1+ Panel over the first layer sandwiching the acoustic membrane between the boards. Leave a 2-3mm gap around the wall’s perimeter to reduce noise transfer into the adjoining walls, ceilings and floors.
• Acoustic sealant is applied around the edge of each panel and the perimeter of the wall to ensure an airtight seal.
• If you are reinstating electrical outlets, use acoustic putty pads inside the back boxes.

Spacing AcoustiClips

Horizontally – Fix an AcoustiClip at the start and end of each row. AcoustiClips are spaced at a maximum of 1200mm centres along the AcoustiChannel.

Vertically – AcoustiClips are fitted a maximum of 600mm horizontally, 100mm from the floor and 150mm from the ceiling.

Product Brochure

Fitting

Performance Data

System Quantities
