AcoustiClip Acoustic Wall Systems
Acoustic Wall Systems: Guide to the AcoustiClip Soundproofing System
In modern construction, soundproofing is essential for creating comfortable and private spaces, especially in our homes, offices, apartments, hotels, and studios. Acoustic wall systems, designed to control noise and enhance acoustic performance, play a crucial role in achieving this. One innovative solution in this field is the AcoustiClip Soundproofing System, which effectively reduces sound transmission between rooms and improves the overall acoustic quality of a building.
This article explores how the AcoustiClip soundproofing system works, its benefits, and how it compares to traditional soundproofing methods.
AcoustiClip
Decoupling sound isolation clip system for all wall types
What is the Acousticlip Soundproofing System?
The AcoustiClip Soundproofing System is a decoupling solution designed to reduce sound transmission through walls by creating a barrier that prevents sound waves from travelling between different materials. Unlike traditional methods that rely solely on mass or insulation, AcoustiClip focuses on decoupling, a technique where the surfaces of walls are separated to break the direct path for sound vibrations.
The system uses specialised clips (hence the name “AcoustiClip”) that attach to the wall. These clips hold resilient channels or other soundproofing materials. The AcoustiClip System minimises sound transfer and creates a more effective sound barrier by decoupling the plasterboard from the building’s structure.
How AcoustiClip Works
Sound travels through walls by causing vibrations in the materials they are made from. These vibrations can move through studs, plasterboard, brick and other rigid materials, allowing sound to pass from one room to another. The AcoustiClip system acts as an absorber between the plasterboard and the structural frame of the wall, interrupting the path of sound vibrations.
Here’s a breakdown of how the AcoustiClip System works:
Clips and Resilient Channels: The AcoustiClip clips are attached to the wall or studs, and resilient channels are then mounted onto the clips. The resilient channels are thin metal strips designed to flex slightly, which helps absorb and dissipate sound vibrations.
Decoupling: The key feature of the AcoustiClip system is decoupling. Separating the plasterboard from the structure using the clips and channels prevents direct sound vibrations from passing through the wall structure, greatly reducing sound transmission compared to conventional wall assemblies.
Layering: Multiple layers can be attached to the resilient channels for enhanced soundproofing. A soundproofing layer of mass-loaded vinyl can also be applied between plasterboard layers to increase damping and reduce sound transmission.
Sealing: Acoustic caulk seals gaps, seams, and joints to prevent sound leakage and ensure the soundproofing system is airtight.
Key Features of the AcoustiClip Soundproofing System: A Unique Solution for Noise Control
1. Decoupling for Maximum Noise Reduction
The decoupling effect created by the AcoustiClip System is one of the most effective ways to reduce noise transmission. By preventing direct contact between the plasterboard and the wall, the system breaks the sound path, significantly lowering the amount of noise that can pass through walls.
2. Flexibility and Versatility
The AcoustiClip System, with its remarkable versatility, can be seamlessly integrated into various construction projects, from residential homes to commercial buildings. It is particularly effective for:
Party Walls: Soundproof solid brick walls between properties to reduce unwanted neighbour noise.
Stud Walls: Increase the privacy in your home by soundproofing internal stud walls.
Home Theaters: Where high levels of sound isolation are needed to keep audio contained within the room.
Recording Studios: To prevent external noise from interfering with recordings and keep studio sound from leaking.
Office Spaces: These are used to create quiet workspaces and ensure confidential conversations in meeting rooms.
3. Compatibility with Other Soundproofing Materials
The AcoustiClip System is compatible with other soundproofing materials, enhancing performance. For example, soundproofing insulation (like mineral wool or fibreglass) can be placed within the wall cavities to reduce noise further, and soundproof panels can be added for extra mass. This flexibility allows builders, homeowners, and architects to customise the soundproofing level based on specific needs.
4. Ease of Installation
The AcoustiClip System is relatively easy to install, especially during new construction or renovations. The clips can be quickly attached to walls or studs, and the resilient channels easily mount. Once installed, the plasterboard can be attached to the channels, making integrating the system into most building projects straightforward.
5. Cost-Effectiveness
When it comes to soundproofing systems, AcoustiClip stands out as a cost-effective solution that doesn’t compromise on performance. While other methods may involve more complex construction techniques or expensive materials, AcoustiClip’s decoupling approach achieves significant noise reduction with fewer resources, ensuring a high return on your investment.
Benefits of the AcoustiClip Soundproofing System
1. Superior Soundproofing Performance
The primary benefit of the AcoustiClip system is its ability to block airborne noise (such as voices or music) and impact noise (such as footsteps or furniture movement). This is crucial in environments where noise control is a priority, like houses, residential flats, hotels, and multi-purpose office spaces.
2. Improved Acoustic Comfort
The AcousticClip System reduces room sound transmission to create a quieter, more peaceful indoor environment. This enhances privacy and overall comfort for building occupants. Controlling noise in a home or office helps reduce stress and improve productivity.
3. Structural Integrity
Despite its soundproofing capabilities, the AcoustiClip System does not compromise the wall’s structural integrity. The resilient channels and clips provide adequate support for drywall while isolating it from the wall’s frame, ensuring the wall remains strong and durable.
4. Space-Efficient Design
Unlike some soundproofing methods that require thick, heavy layers of materials, the AcoustiCclip System takes up minimal space. This makes it ideal for buildings where space efficiency is a concern, especially in retrofits or renovations where maintaining room dimensions is essential.
Featured AcoustiClip System Products
Acoustic Plasterboard 15mm Full & Half Size
£10.5 exc VAT.

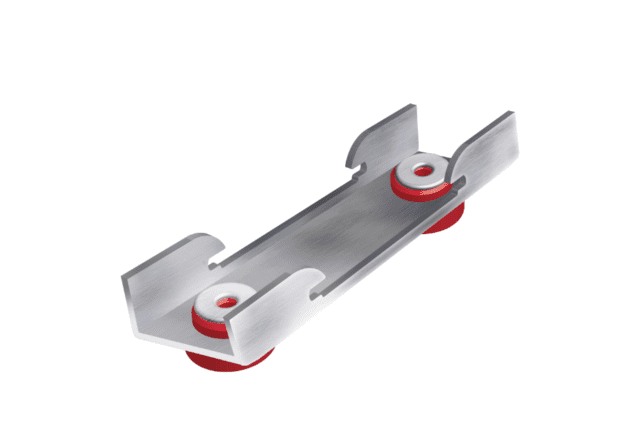

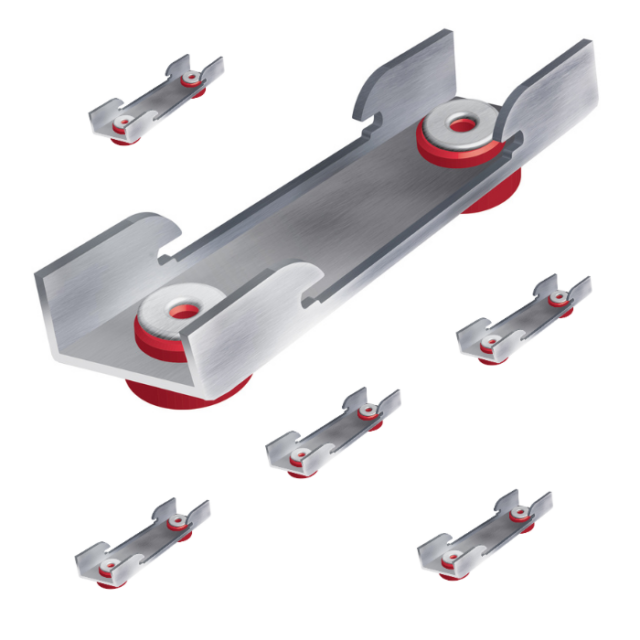

AcoustiClip - Sound Isolation Clip
£4.95 exc VAT.

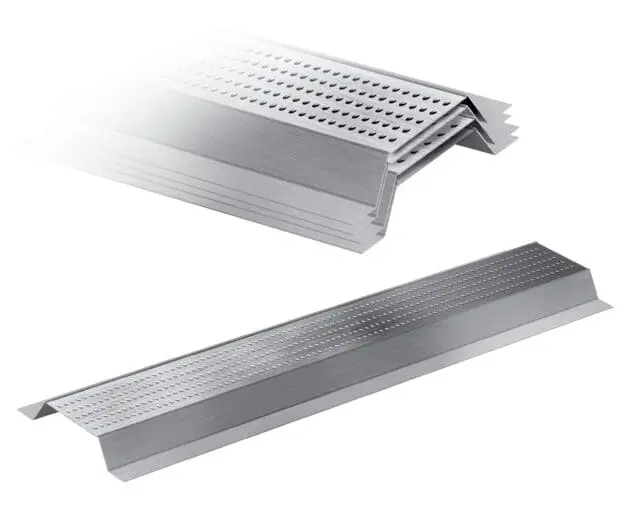

AcoustiChannel 1800mm Metal Furring Channel
£4.45 exc VAT.
Noisestop Isolation Strips 10m - 50mm, 75mm & 100mm
£11.85 exc VAT.

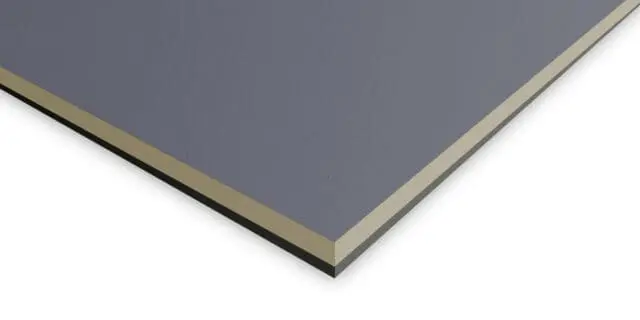

Noisestop 1 Plus Panel 18mm x 1200mm x 1200mm Soundproof Panel
£29.95 exc VAT.
Acoustic Insulation 25mm/60kg DFM Per Pack
£52 exc VAT.
Acoustic Insulation 50mm DFM Per Pack
£44 exc VAT.
Acoustic Sealant 310ml & 900ml
£3.95 exc VAT.
The AcoustiClip soundproofing system is ideal for use in several settings:
Residential: To reduce noise between rooms or between apartments in multi-unit buildings.
Commercial: For soundproofing conference rooms, private offices, or shared workspaces in commercial buildings.
Studios and Theaters: To ensure sound isolation in professional recording studios and home cinemas.
Hospitality: To enhance privacy and comfort in hotel rooms by reducing noise transmission between adjacent spaces.
Conclusion
The AcoustiClip Soundproofing System offers an innovative, effective, and affordable solution for reducing noise transmission through walls. Using decoupling to isolate sound vibrations, It outperforms many traditional soundproofing methods, making it an excellent choice for residential, commercial, and professional environments. With its ease of installation, versatility, and compatibility with other soundproofing materials, AcoustiClip provides a practical way to achieve superior acoustic performance in any building project.
