tecsound SY

Tecsound SY100 4000mm x 1200mm x 5mm

0 out of 5

£89.09 ex. VAT

Out of stock

Shipping Shipping

Delivery Information

Delivery charges £60ex.VAT is applied to most of the products we supply due to the weight and size of the materials.

£20ex.VAT for smaller items. This charge applies when smaller items are ordered individually without materials we must deliver on a pallet. Only the pallet charge will be applied when smaller items are purchased with materials delivered on a pallet.

Customer collections are available. You must arrange this with the sales team before the collection date. If you would like to collect materials, please call 01423 339163.

Goods delivered within 3-5 days.

Once you’ve placed your order, we will contact you to arrange a suitable delivery date.

Call 01423 339163 for more information

Find out more

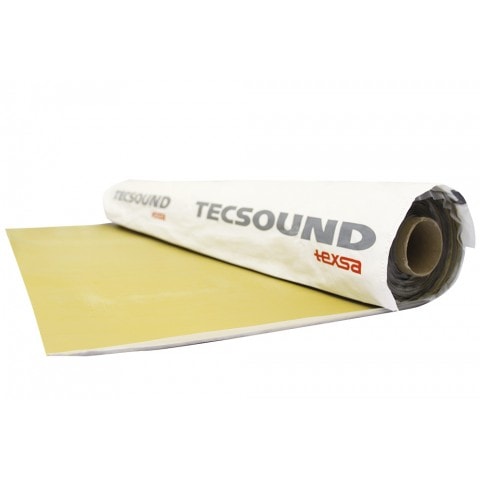

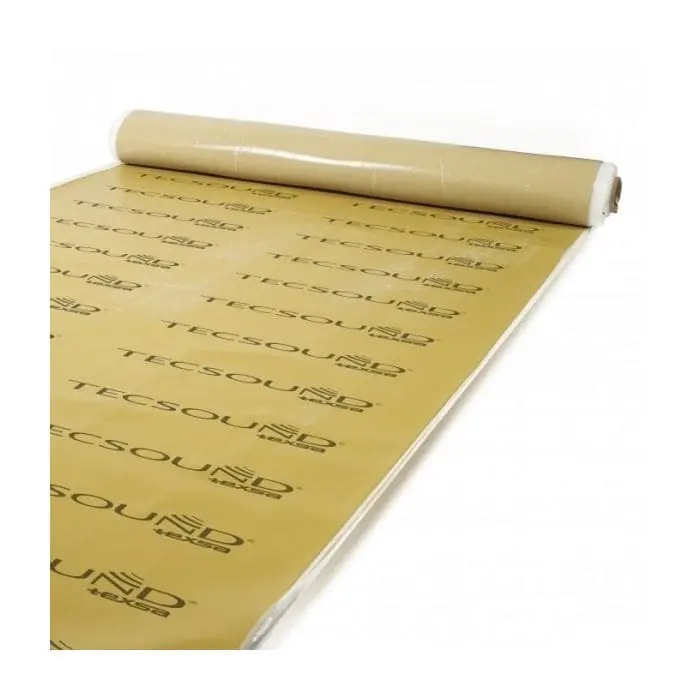

Tecsound SY100 self-adhesive membrane is a high-performance viscoelastic material that reduces airborne noise and dampens vibrations

Use Tecsound SY100 in various applications, including soundproofing for walls, ceilings, and floors. Tecsound SY100 is a 10kg/m² viscoelastic membrane that adds mass when applied to various structures reducing airborne sounds. Reduce vibrations through plasterboards and other hard surfaces that resonate with sounds with Tecsound. Combine Tecsound with acoustic insulation, soundproof plasterboard and the AcoustiClip to form a complete soundproof system.

  • Size 4000mm x 1200mm x 5mm (4.8m²)
  • Noise reduction 32dB
  • Soundproofing for walls, ceilings and floors
  • Fitting DIY soundproofing or trades
  • Reduces airborne and vibration sounds
  • Compliant Part E
  • Price per m² £18.56
    Enquiries call 01423 339163
SKU: 010060 Categories: Ceiling Soundproofing, Wall Soundproofing


Tecsound SY100 is a highly versatile soundproofing membrane. It is used in various types of construction that require a thin, yet effective barrier to reduce airborne and vibration sounds.

The self-adhesive Tecsound sheets are suitable for most wall and ceiling surfaces. One of the main areas of use for Tecsound is between sheets of plasterboard. The viscoelastic nature and high mass/density of the product ensure vibration and airborne sounds are significantly reduced when applied to the plasterboard. Use Tecsound directly onto metalwork to minimise structural vibration.

Tecsound SY100 Specifications and Benefits

  • Length 4000mm
  • Width 1200mm
  • Thickness 5mm
  • Roll size 4.8m²
  • Weight 48kg
  • Weight per m² 10kg
  • Self-adhesive
  • Application for walls, ceilings and floors
  • Fire-resistant and self-extinguishing

Tecsound SY100 Applications

• Increases airborne noise insulation on partition walls with low surface mass (stud walls and party walls)
• Soundproofing against airborne noise in ceilings and lightweight roofs
• Reduction of impact noise in laminated floors
• Damping of noise caused by weather such as rain and hail in lightweight roofs
• Combined with sound-absorbent materials, it offers solutions with high acoustic performances
• Its applications in the industrial field cover from the soundproofing of cabins to the acoustic insulation of machine-rooms, cowling of engines, gutter pipes, sound-damping of metal sheets, etc

Installing Tecsound SY100

  • Tecsound SY is mainly applied between two plasterboard panels
  • The membrane adheres with the self-adhesive underside to the first plasterboard to which the second plasterboard is attached

To prevent thickening, the membrane is placed without overlap (only butt joint). Care must be taken to ensure that the seams fit tightly and that there are no openings
Tecsound SY can also be used in lightweight roofs. Install the membrane with the polyethene film on top and overlap of at least 50 mm. In the case of profiled steel deck, the membrane must be placed transversely to the profile. Make sure that there are no openings as these will have a negative effect on the noise reduction capacity


Tecsound Sound Reduction
TecsoundStandardRw (weighted sound index reduction)
50EN ISO 10140-226
70 EN ISO 140-328
100EN ISO 10140-232

Frequently Bought Together

Alternative Products


Make sure you are getting the right soundproofing for your needs. Understanding the most common types of noise and how to stop them will help you decide the right solution.

Different Types of Sound

  • Airborne sounds – Conversation, TV noise and radios are examples of airborne sound. The best way to stop airborne sounds is to add mass/density to the walls or ceilings.
  • Impact/vibration sounds – Footfall and moving furniture across a floor are examples of impact sounds. The best way to reduce these sounds is to create separation.

In summary, the best way to reduce airborne sounds is by increasing the mass of the area you would like to soundproof. Reducing impact/vibration sounds is achieved by creating separation within the structure.

Reducing Impact and Airborne Sounds

By following some of these steps, you will ensure you get the best level of soundproofing for your room.

  • Mass/Density – Increasing the mass and density of the area you are soundproofing will block airborne sounds from transferring between rooms. You will increase the mass of walls and ceilings using materials such as soundproof panels or high-density acoustic insulation slabs.
  • Separation – Incorporating separation within the structure will reduce vibration and impact sounds transferring between rooms. Achieve separation by building independent stud walls and ceilings. If you don’t have the space in the room, you can use acoustic clips and resilient channels to decouple the wall and ceiling.
  • Absorption – Use materials that are going to absorb sounds. Acoustic insulation is suitable for sound absorption as it converts the sound waves into heat as it passes through the insulation. Dense mass loaded barriers will also dampen and absorb sound.

For help and advice, get in touch, speak to an adviser, call 01423 339163. Alternatively, please send us your enquiry.
